5-Axis vs 3-Axis CNC: Choosing the Right Machine

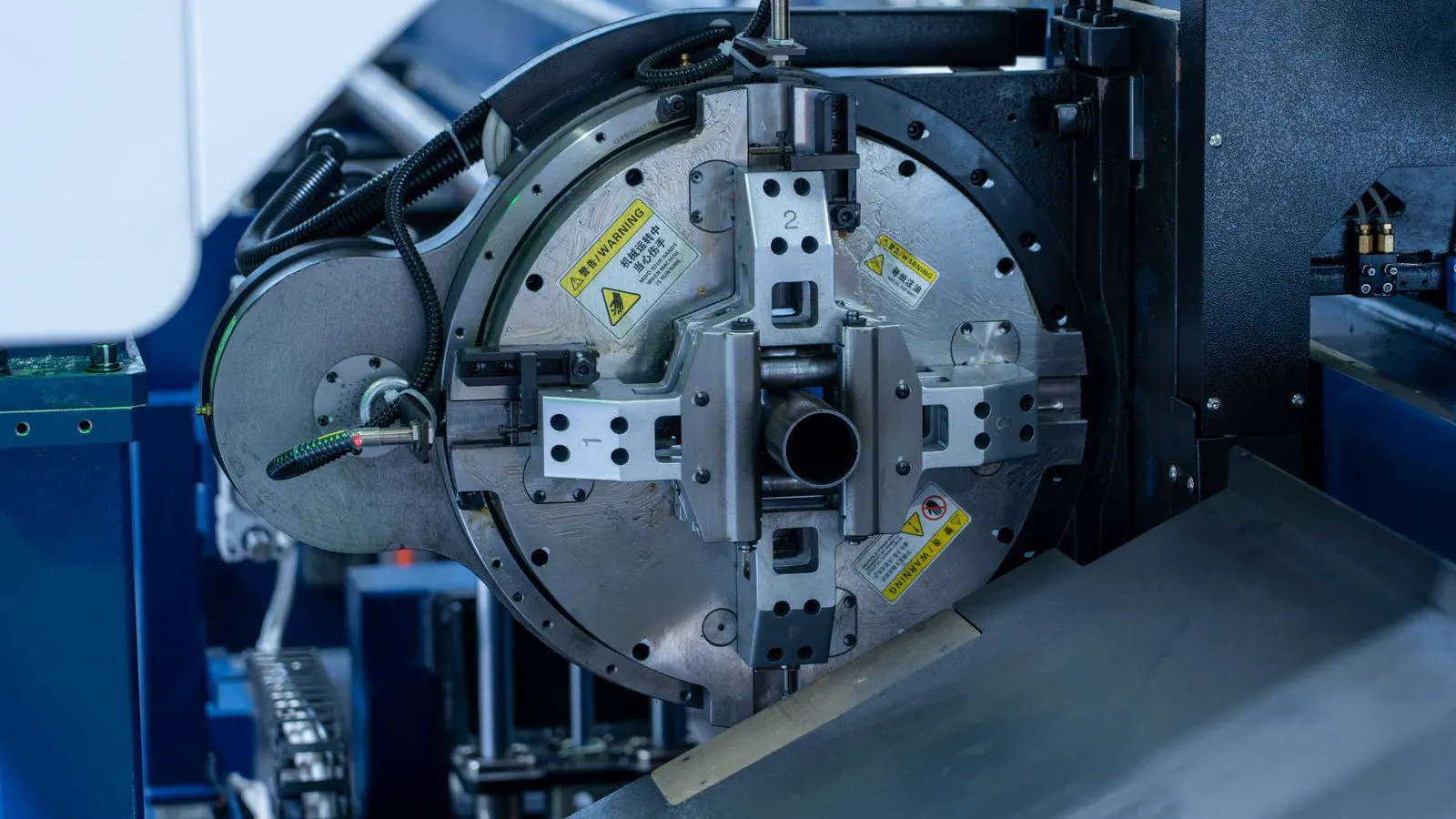

What is the core difference between 3-axis and 5-axis machining

A 3-axis CNC machine moves the tool along X, Y, and Z. The tool moves in a straight line parallel to the table or the workpiece. A 5-axis CNC machine adds two rotational axes, usually on the table or the headstock, allowing the workpiece or tool to tilt in space. This changes how a part is approached. The tool is no longer restricted to a vertical or horizontal plane. It can swing into positions that would be blocked by the table or other parts of the machine.

A 3-axis setup relies on repositioning the workpiece between operations. The operator or automated system must flip, rotate, or re-clamp the part to access a new face. A 5-axis setup can hold the part in one fixed orientation and swing the tool around it. The part stays on the same fixture. The tool moves to different angles.

This difference has direct consequences. Repositioning adds time. It creates a chance for measurement error. Every time a part moves, the datum shifts. The error accumulates. A 5-axis machine eliminates many of these moves. The tool approaches the part from various angles without lifting the part. The choice depends on part shape, material, tolerance, and production volume.

How does part geometry drive the machine choice

Parts with simple flat faces, holes, pockets, and threads fit well on a 3-axis machine. Think of brackets, housings, fixtures, and flat panels. The tool can reach all features from the top and side without tilting. A standard flat plate or a rectangular block is the classic example. The top face is milled. The part is flipped. The bottom face is milled. The holes are drilled from both sides. The machine never needs to tilt.

Parts with multiple angled surfaces, deep pockets, undercuts, or thin walls are harder. A 3-axis machine may need several clamps and multiple setups. Each setup adds time and creates a chance for error. Consider a housing with a slanted front face and a vertical back wall. On a 3-axis machine, you mill the top, flip the part, mill the bottom, and then likely need a third setup to face the slanted surface. The operator must clamp the part in a new position. The tolerance stack-up between the first setup and the third setup becomes a concern.

A 5-axis machine can handle these shapes in one setup. The tool can approach a vertical face from a tilted angle. This is useful for turbine blades, medical implants, aerospace brackets, and complex molds. The geometry of a turbine blade, for example, involves curved surfaces that change orientation continuously. A 3-axis machine cannot machine the entire blade in one go. It would require multiple setups and potentially hand-finishing. A 5-axis machine can machine the blade in a single operation. The tool follows the contour in a way that maintains a consistent cutting angle.

What does a comparison table show about axis options

Option	Best for	Limitations
3-axis CNC	Flat, prismatic, and simple 3D parts	Needs multiple setups for angled features
3-axis with pallet changer	High-volume, repeatable part families	Limited to parts that fit within tool envelope
5-axis CNC	Multi-sided, contoured, thin-wall, and complex parts	Higher cost and more complex programming
5-axis mill-turn	Complex parts needing turning and milling	Premium cost and specialized maintenance

A 3-axis machine is the default for many shops. It is easier to program, easier to maintain, and cheaper to buy. The programming is linear. The toolpaths are straightforward. The maintenance is limited to linear rails and a spindle. A 5-axis machine is a specialized tool. It earns its cost when the part geometry demands it. The rotational axes introduce more mechanical points of failure. The control system must calculate the tool orientation in real-time. The programming becomes a 3D simulation of the tool moving in space.

The table highlights a middle ground: the 3-axis machine with a pallet changer. This setup allows a shop to run several different part types in sequence. The pallets are changed automatically. The machine continues to run while the operator prepares the next pallet. This is highly efficient for high-volume production of simple parts. However, it does not solve the geometry problem. If the part on the pallet requires a tilt, the machine cannot perform it.

When should you choose a 3-axis CNC machine

Pick 3-axis when the part is mostly flat. A 3-axis machine excels at drilling, milling, tapping, and profiling. It is also better for high-volume runs where cycle time and machine availability matter. The simplicity of the machine means it can run longer without intervention. If a machine breaks down, the repair is often faster and cheaper. This keeps the production line moving.

Consider 3-axis when the part fits within a fixed work envelope. If the part has multiple faces but each face can be machined in a separate setup, a 3-axis machine works well. Use a pallet changer if the same machine can run several part types in sequence. For example, a shop might produce a family of electrical enclosures. Each enclosure has the same basic shape but different hole patterns. A pallet changer can load ten different enclosures onto the machine. The machine runs through all ten in one shift. The operator only loads and unloads at the start and end of the shift.

A 3-axis machine is a good fit for automotive brackets, electrical enclosures, fixtures, and simple housings. The part does not need to be held in a tilted position. The tool does not need to reach around the part. The material is usually mild steel, aluminum, or plastic. The tolerances are standard. The surface finish is functional, not aesthetic. The part is designed to be machined in a fixed orientation.

When should you choose a 5-axis CNC machine

Pick 5-axis when the part has many angled surfaces. A 5-axis machine can machine a part in one setup, which reduces handling and improves repeatability. Fewer setups mean fewer chances for error. The part is clamped once. The tool does all the work. The final part is a single, coherent object. The tolerance stack-up is minimized because the reference datum never changes.

Use 5-axis for thin-wall parts. Tilting the part can prevent tool deflection and chip evacuation issues. If a part has a thin wall, machining from the top with a vertical tool can cause the wall to flex. The tool pushes against the wall. The wall bends. The finish is poor. The tolerance is off. By tilting the part, the tool can approach the wall at a shallow angle. The cutting force is parallel to the wall surface. The wall does not flex. The chips can be evacuated easily. This is common in medical implant manufacturing, where the walls are thin and the tolerance is tight.

A 5-axis machine is a good fit for aerospace brackets, medical implants, turbine blades, and complex molds. The part has features that cannot be reached from a single orientation. The tool needs to approach the surface at an angle to avoid tool interference. For a complex mold, the cavities are often deep and angled. A 3-axis machine would need to drill from the top and then machine the sides. The tool might hit the bottom of the cavity. A 5-axis machine can tilt the part to clear the tool. The tool can drill from an angle. The process is cleaner and faster.

How do cost and production volume affect the decision

A 3-axis machine costs less to buy and maintain. It is simpler to program and easier to troubleshoot. For high-volume production, that simplicity can lower the cost per part. The machine is cheaper to insure. It is cheaper to repair. The operators are easier to train. The programming time is shorter. All of these factors add up. Over the life of the machine, the 3-axis option is significantly cheaper.

A 5-axis machine costs more. The rotational axes add mechanical complexity. Programming is harder. Setup time can be shorter for complex parts, but programming time can be longer. The programmer must account for tool orientation. The machine must check for collisions in a 5D space. The software is more expensive. The maintenance is more complex. The cost per part is higher if the volume is low.

The right choice depends on the part. If a 3-axis machine can do the job in two setups and the part volume is high, the lower machine cost may win. The extra time for the setup is spread over many parts. The cost per part drops. If a 5-axis machine can do the same job in one setup and the part is complex, the reduced handling may win. The time saved on setup and the quality gained from a single setup justify the higher machine cost.

What are the common mistakes in choosing a CNC machine

One mistake is picking a 5-axis machine for simple parts. The extra cost does not pay off if the part only needs flat milling. The machine sits idle while it performs a task that a 3-axis machine could do. The capital cost is wasted. The maintenance cost is higher. The operator is trained for a complex machine but uses only a fraction of its capabilities.

Another mistake is picking a 3-axis machine for a part that needs tilted access. The shop ends up with extra setups, clamps, and rework. The part may be rejected because the tolerance stack-up is too high. The shop may have to rework the part by hand. This defeats the purpose of automation. The labor cost goes up. The cycle time goes up. The quality is inconsistent.

A third mistake is ignoring tooling. A 5-axis machine can reduce setups, but only if the tooling can reach the features. Long tools can break. Short tools may not reach. The programmer must check the tool length. The tool must be able to clear the workpiece and the fixture. If the tool is too long, it vibrates. If it is too short, it cannot reach the feature. The tooling selection must be part of the machine selection process.

A fourth mistake is ignoring material. Hard materials like titanium or superalloys may need a 5-axis machine to reduce stress and improve finish. The cutting forces are high. The tool deflection is high. Tilting the part can reduce the stress on the tool. It can improve the finish. Soft materials may work on 3-axis. The decision depends on the material properties and the machine rigidity.

How do you verify a machine can handle your parts

Before buying, send a representative part to the supplier or integrator. Ask for a machining plan. Check the setup, tooling, cycle time, and inspection method. The machining plan should show how the part is held. It should show which tools are used. It should show the sequence of operations. It should show the estimated cycle time.

Check the work envelope. The part must fit with room for clamps and tool access. Check the spindle power and rigidity. Check the control system and software. The control system must be able to handle the complexity of the part. The software must be able to simulate the toolpaths. The simulation must show any collisions.

Ask for a sample part. Inspect the finish, tolerances, and surface texture. Check the first article report. Verify that the machine can hold the tolerance over repeated cycles. A single good part does not prove the machine is capable. The machine must produce good parts consistently. The sample part should be inspected with a CMM or a high-precision measuring system.

If the part is for a regulated industry, ask for documentation. The supplier should provide setup sheets, tool lists, and inspection records. This is part of the CNC application process. The documentation proves that the machine is set up correctly. It proves that the tools are the correct ones. It proves that the inspection is done correctly. This documentation is required for audit.

What is the right way to think about axis count

Axis count is not a quality label. More axes do not mean better parts. They mean more flexibility. A 3-axis machine can produce a part with a surface finish of 6.3 microns. A 5-axis machine can produce the same part with a surface finish of 6.3 microns. The axis count does not change the quality. It changes the method.

A 3-axis machine can make high-quality parts. A 5-axis machine can make the same parts faster when the geometry requires it. The goal is to match the machine to the part. The part defines the requirement. The machine must meet the requirement. If the part is simple, a simple machine is sufficient. If the part is complex, a complex machine is required.

If the part is simple, choose 3-axis. If the part is complex, choose 5-axis. If the part is high-volume, choose the machine that gives the best cost per part. If the part is low-volume and complex, choose the machine that gives the best first-article quality. The cost per part is determined by the machine cost, the labor cost, and the cycle time. The first-article quality is determined by the accuracy of the machine and the skill of the programmer.

The machine selection decision is a trade-off. It balances cost, cycle time, quality, and flexibility. The right choice is the one that fits the part, not the trend. Do not buy a 5-axis machine because it is popular. Do not buy a 3-axis machine because it is cheap. Buy the machine that solves the problem. The problem is defined by the part. The solution is defined by the machine.
