CNC Quality Control: Understanding Tolerances and Inspection Methods

Why Tolerances and Inspection Methods Are Different

A part drawing tells the supplier what the part must be. It does not automatically tell them how to prove it. This gap causes more sourcing friction than most buyers expect.

A dimensional tolerance states the acceptable limit for a specific feature. A 25.00 mm bore might allow a range from 24.98 to 25.02 mm. That range is the tolerance. An inspection method is the tool or technique used to measure whether the part falls inside that range. Calipers, micrometers, coordinate measuring machines, and optical comparators all serve different purposes.

When these two concepts blur together, communication breaks down. A buyer might specify a tight tolerance but not realize the supplier needs a specific machine to verify it. The supplier might offer a cheaper inspection method that technically measures the feature but cannot confirm the tightest limit in the drawing. The result is either over-engineered inspection costs or a part that passes a loose check but fails on the actual requirement.

How Tolerances Shape Sourcing Decisions

Tolerances drive cost, lead time, and supplier capability. A part with general tolerances allows many machines to compete. A part with tight concentricity or surface finish requirements narrows the field to suppliers with specific fixtures, calibration routines, and inspection equipment.

Tight tolerances also affect the inspection cycle. A simple length check with calipers takes seconds. A three-dimensional coordinate check can take minutes per part. When sourcing, buyers should ask how many parts the supplier plans to inspect and with what method. If the drawing calls for a tolerance that requires a coordinate machine, but the supplier plans to use calipers, the drawing needs correction or the acceptance criteria need adjustment.

Surface finish tolerances interact with dimensional tolerances in ways that are easy to miss. A rough surface makes a dimensional measurement less reliable because the contact point between the measuring tool and the part varies. Buyers often specify a surface finish requirement without realizing it changes how the supplier must measure the part.

Common Inspection Methods for CNC Parts

Different features require different measurement approaches. The table below summarizes how common inspection methods map to typical part features.

| Inspection Method | Typical Feature Check | General Observation |
| Calipers | Length, diameter, slot width | Fast and low cost, but limited by operator skill and part geometry |
| Micrometer | Bore diameter, shaft length | Higher precision than calipers, requires careful alignment |
| Height gauge | Flatness, step height | Useful for small height differences, not for complex shapes |
| Coordinate measuring machine | Hole position, overall geometry | High precision, slower per part, requires software setup |
| Optical comparator | Small profile, edge position | Non-contact, good for small features, sensitive to lighting |
| Surface finish tester | Surface roughness | Measures texture, not overall shape or position |

No single method covers every requirement. A typical machined bracket might need calipers for overall length, a micrometer for a critical bore, and a coordinate machine for the position of mounting holes relative to the base plane. The drawing must specify which method applies to each feature, or the buyer must agree on a default method with the supplier before production starts.

How to Specify Tolerances and Inspection Requirements

A clear drawing separates tolerance values from inspection notes. The tolerance value is the number. The inspection note is the instruction on how to verify it.

For example, a flatness requirement might state that a base surface must be within 0.05 mm across a 100 mm length. The inspection note could say to verify with a surface plate and feeler gauges, or with a coordinate machine in a fixed setup. If the note is absent, the supplier may use whatever method is convenient in their shop. That convenience may not match the buyer’s acceptance standard.

For hole position, the specification should identify the datum references. A hole at position (10, 10) is meaningless without knowing which edges or surfaces define the origin. The inspection method then depends on those datums. If the datums are machined surfaces, a coordinate machine setup is usually needed. If the datums are simple ground faces, a height gauge and caliper combination may suffice.

Buyers should also specify whether inspection is 100 percent or sample-based. A lot of ten parts might be checked with a sample of three. A lot of one hundred might be checked with a sample of five. The sample size and acceptance criteria belong in the purchase order or quality plan, not buried in the drawing header.

A Worked Example in Plain Words

Consider a small aluminum plate that holds two sensor modules. The plate is 80 mm by 60 mm. Two holes, each 5 mm in diameter, are located near the corners. The holes must be 20 mm apart, and each hole must be perpendicular to the top surface within a small angle.

The dimensional tolerance for the 20 mm spacing is plus or minus 0.05 mm. The perpendicularity tolerance for each hole is plus or minus 0.02 mm over the hole depth. The top surface must be flat within 0.03 mm across the plate.

A supplier who reads this drawing should understand that calipers alone cannot verify all of it. Calipers can measure the 20 mm spacing between hole centers. They cannot reliably confirm perpendicularity. The perpendicularity check requires a setup that controls the plate orientation, such as a coordinate machine or a dedicated optical system. The flatness check requires a reference surface and a measuring tool that can detect a 0.03 mm deviation.

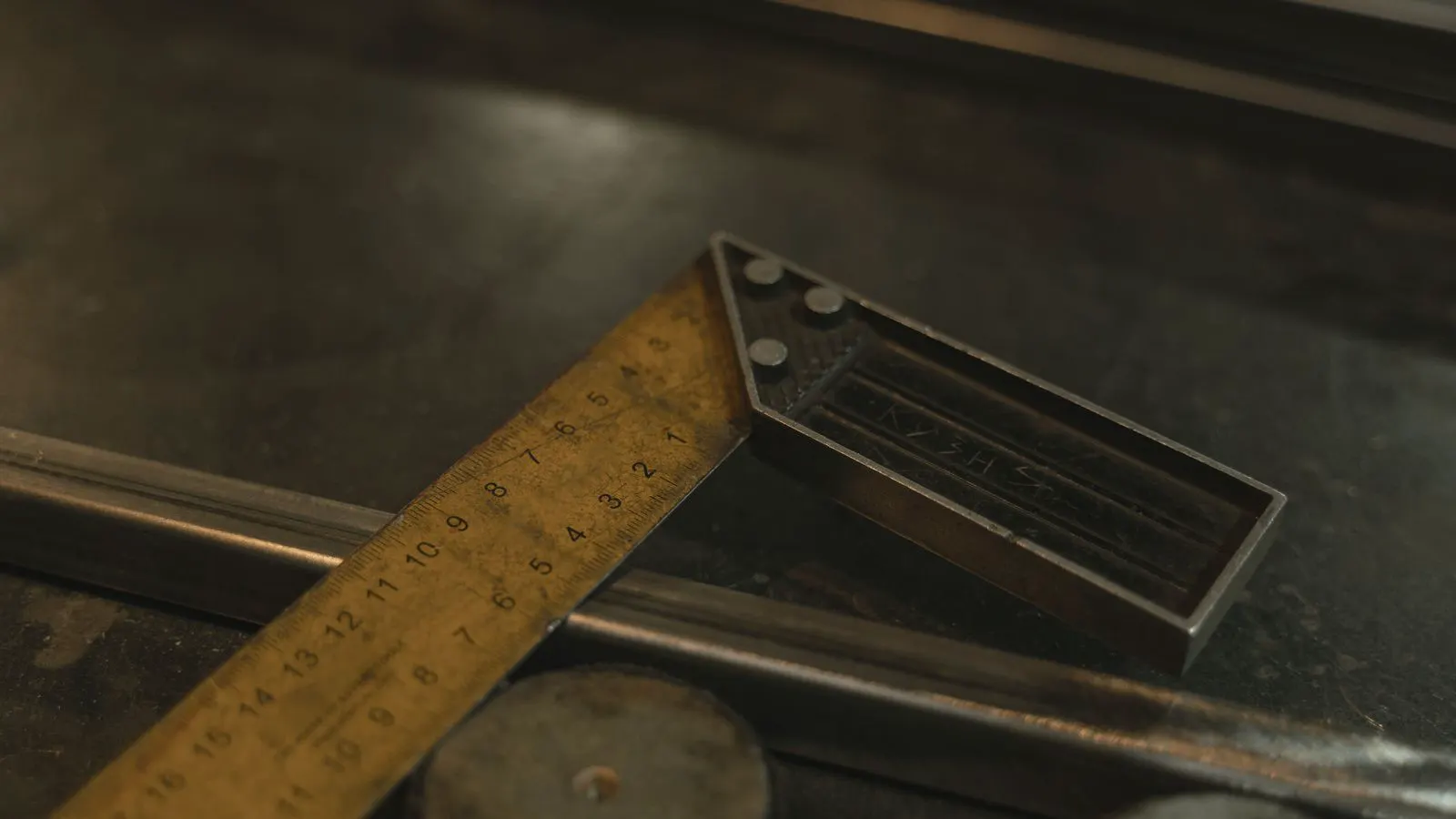

If the buyer does not specify the inspection method, the supplier might measure the spacing with calipers, check perpendicularity by eye with a square, and assume flatness based on the machining process. The part might look fine on the shop floor but fail the buyer’s acceptance test. The buyer might reject the lot and demand rework. The supplier might dispute the result because their internal checks passed. Both sides followed their own definitions of quality.

When the drawing includes a note saying that hole position and perpendicularity are to be verified by coordinate measuring machine with specified datums, the supplier knows exactly what equipment to use. The buyer knows what to expect. The part either meets the requirement or it does not, without ambiguity.

How to Align Requirements with Supplier Capability

Before finalizing a drawing, review the supplier’s inspection resources. Ask what machines are available for the specific features in the drawing. If the supplier uses a coordinate machine for all position checks, ask how long the setup takes and whether it affects lead time. If the supplier uses manual methods, ask whether those methods can reliably detect the specified tolerance.

Some suppliers offer inspection reports with each lot. Others provide only a certificate of compliance. A report with actual measurements is more useful than a statement that the part passed. Ask for the measurement values, the method used, and the date of inspection. This information becomes part of the quality record and supports future troubleshooting.

If a tolerance is tighter than the supplier can reliably inspect, there are two options. Tighten the tolerance if the part function requires it. Loosen the tolerance if the part function does not. If the tolerance is correct but the inspection method is insufficient, change the inspection method. The goal is a part that works and a quality process that can prove it.

How to Reduce Inspection Disputes

Most disputes come from unclear requirements, not from poor machining. A part that measures within the specified tolerance should not be rejected on aesthetic grounds or based on a different interpretation of the drawing.

To reduce disputes, review the drawing with the supplier before production. Walk through each tolerance and identify the inspection method. Agree on sample sizes and acceptance criteria. Put these agreements in the purchase order. If the drawing changes after production starts, update the purchase order and the quality plan.

When a dispute occurs, ask for the raw measurement data. Compare the data to the drawing tolerances and the agreed inspection method. If the data shows the part outside the tolerance, the supplier must correct it. If the data shows the part inside the tolerance, the buyer must accept it. If the inspection method was not agreed, the dispute is on the process, not the part.

Clear communication between tolerance specifications and inspection methods is the foundation of a reliable quality process. It costs time upfront, but it saves time, money, and frustration during acceptance.
